N45 10X3mm Cylindrical/Center Hole NdFeB Magnet Rare Earth Neodymium Permanent Magnet

 Neodymium magnet has super magnetic force and high intrinsic coercive forceGRADE N35-N52 , 35H-48H,30SH-45SH,28UH-40UH,28EH-38EH , ETCWORKING TEMPERATURE80 centigrade to 200 centigradeCOATING Ni, Zn, Epoxy, Gold and so on(As the customers\' request)SHAPERing / Cylinder/ Arc/ Block/ Stick /Cubiod /Cube Bar/ Irregu

Featured Products


Neodymium magnet has super magnetic force and high intrinsic coercive force
GRADE N35-N52 , 35H-48H,30SH-45SH,28UH-40UH,28EH-38EH , ETC
WORKING TEMPERATURE80 centigrade to 200 centigrade
COATING Ni, Zn, Epoxy, Gold and so on(As the customers' request)

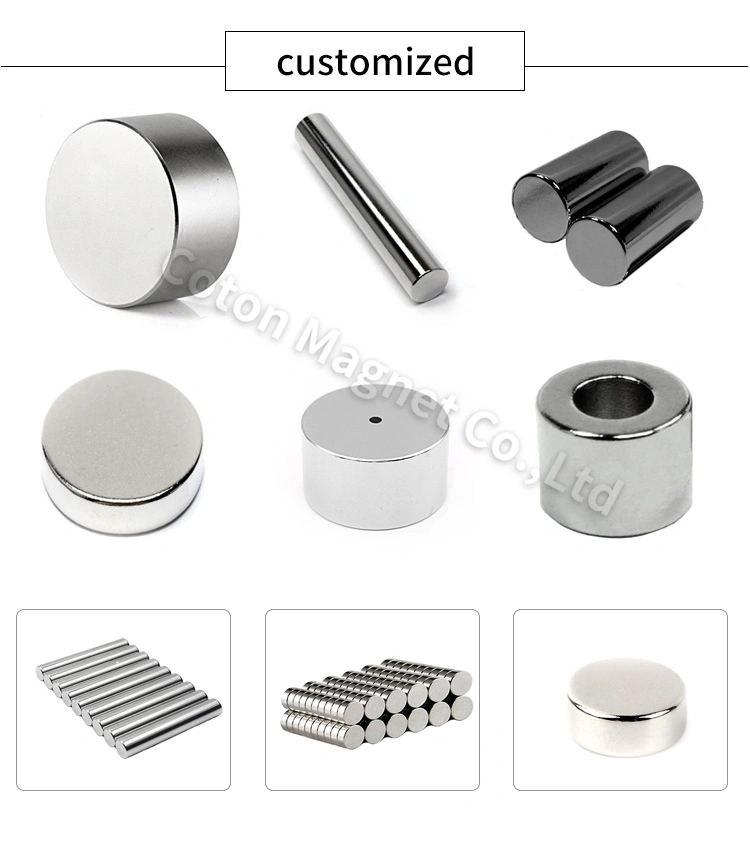

SHAPERing / Cylinder/ Arc/ Block/ Stick /Cubiod /Cube Bar/ Irregular &Customized


Permanent magnets are used in many groups :
Such as Motors And Generators, Acoustic Transducers , Magneto Mechanical Devices, Magnetic Field And Imaging Systems . in addition it also can be find in  Television, Telephones, Computers , Audio Systems And Automobiles .
Product Description


1 materials : Ne-Fe-B

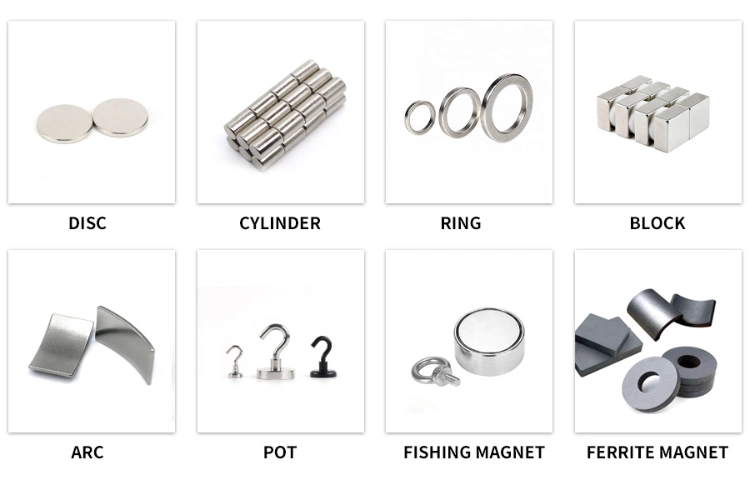

2 shape: block , Arc , ring ,disc , cylinder , and customized design
3 certificate: ISO  / RoHS


Magnet Series
Max. Working temperature
Magnet grade
N≤80ºC/176°FN33,N35,N38,N40,N42,N45,N48,N50,N52
M≤100ºC/212°FN35M,N38M,N40M,N42M,N45M,N48M,N50M,N52M
≤120ºC/248°FN35H,N38H,N40H,N42H,N45H,N48H,N50H
SH≤150ºC/302°FN35SH,N38SH,N40SH,N42SH,N45SH,N48SH
UH≤180ºC/356°FN28UH,N30UH,N33UH,N35UH,N38UH,N40UH,N42UH,N45UH
EH≤200ºC/392°FN28EH,N30EH,N33EH,N35EH,N38EH,N40EH,N42EH
AH≤230ºC/446°FN28AH,N30AH,N33AH,N35AH,N38AH,N40AH
Product Parameters

1 materials  :   Neodymium

2 Grades :
 N35 - N54 ; 35M - 52M , 33H -50 H ; 33SH - 45SH ; 30UH - 42UH ;
                30EH - 38EH ; 28AH - 33AHB ;
3 Coating :
can be customized ,  various coating to protect the magnets ,such as Ni , Zn , gold ,copper ,epoxy,  Chemical , perylene and so on.
4 size :
customized size per your requirements  ,such as largest block length of 150 mm , biggest ring of D220mm ,smallest thickness of 0.5mm ;

5 performance :
 high coercive force (Hcb) can reach 9.7 KOe(772KA/M) ,
the max operation temp (TW) is up to 220 degree centigrade or 380 curie temperature ;

N45 10X3mm Cylinder / Center Hole NdFeB Magnet Rare Earth Neodymium Permanent Magnet
N45 10X3mm Cylinder / Center Hole NdFeB Magnet Rare Earth Neodymium Permanent Magnet
N45 10X3mm Cylinder / Center Hole NdFeB Magnet Rare Earth Neodymium Permanent Magnet

FAQ :


1 ) Get quotation quickly

Kindly offer us the follow information :

Specific size
quantity
CoatingZinc or nickel
Magnetism direction

Then the best price will be offered ASAP ;


2) About sample
Accepted , sample can be supplied

3) About the certification
ISO and RoSH

4 The Price
Price based on quality .

5 The Lead Time .
3~7 for sample , and bulk products about 15 days .
