90HP SCR Efficiency Permanent Magnet Motor Screw Air Compressor Oil Injection Permanent Magnet

Product Technical DescriptionModel :  Energy Saving Series (EPM)Type: Oil Injected Permanent Magnetic Screw CompressorVoltage: 380V/50HZ/3P, 220V/60HZ/3P, 400V/50HZ/3P, 415V/50HZ/3P or Customer′s RequirementsWorking Pressure: 7~13barInstalled Motor Power: 15~110 KwColor: Bl

Featured Products

Product Technical Description

Model :  Energy Saving Series (EPM)
Type: Oil Injected Permanent Magnetic Screw Compressor
Voltage: 380V/50HZ/3P, 220V/60HZ/3P, 400V/50HZ/3P, 415V/50HZ/3P or Customer′s Requirements
Working Pressure: 7~13bar
Installed Motor Power: 15~110 Kw
Color: Blue
Driven Method:Taper Connection Direct Driven
Air End: Original Ally-win Air End from Germany.
Trademark: SCR
Transport Package: Standard Wooden Packing
Available Certificate: CE, ISO, UL, ASME, GHOST
Origin: Shanghai, China
application: Casting,Metal,Plastic,Rubber


Product Features

1. China-Japan latest technology cooperation, high reliability.

2. Oil Cooling  Permanent Magnetic Motor.

3. IP65 protection grade & heavy duty air filter, suitable for high dusty environment.

4. IE4 Efficiency motor efficiency.

5.Max.RPM 1500,low noise,high efficiency,better life-span.

6. Most energy saving mode, Only work at loading.

7. Wide frequency range 30%-100%.

8. Premium Magnetic material resist more than 180ºC temp.

9. Reliable PM motor supplier from Italy.

10. Direct Taper connection, no transmission power loss, easy maintenance.

11.Touch Screen PLC with preset running schedule, more intelligent control.

12. Precise VSD technology control.

13. Easy for installation and service.

14. Fantastic Energy Saving, save up to more than 30-40%.

Specially designed PM motor:

The PM motor efficiency is even higher than IE3 premium efficiency motors. The motor uses high performance magnetic materials giving many advantages such as bearing free operation, grease free maintenance, direct 1:1 coupling without transmission losses, low noise and low vibration leading to a compact structure.

Enhanced Energy Savings:

When demand is low the PM low pressure compressor firstly reduces the speed to maintain the correct flow demand. If the air demand stops the compressor enters standby mode, saving further energy. The compressor automatically restarts and runs when the pressure drops below its setpoint.

The latest generation intelligent touchscreen controller:

SCR's latest touchscreen interface allows simple intelligent control for your compressor. Pressure and scheduling times can be easily programmed allowing you to automatically start and stop the compressor to match production times. Remote operation and real time monitoring are built in the controller as standard.


90HP SCR Efficiency Permanent Magnet Motor Screw Air Compressor Oil Injected Permanent Magnetic
90HP SCR Efficiency Permanent Magnet Motor Screw Air Compressor Oil Injected Permanent Magnetic
90HP SCR Efficiency Permanent Magnet Motor Screw Air Compressor Oil Injected Permanent Magnetic

ModelSCR90EPM-7SCR90EPM-8SCR90EPM-10
Capacity/Pressure(m3/min,/BAR)12.7/712.5/812.3/10
PM MotorPower(KW)63KW(90H.P)
Speed(r/min)1500
Starting wayVSD Startup
Volt(V)380/400/415(220)
Motor safety gradeIP54
Motor isolation gradeF
Electrical Supply380(400,415)V/50Hz/3Phase, 220V/60HZ/3P
Outlet Temperature(ºC)≤ Environment Temperature+10ºC
Driven wayDirect Driven
Noise level at 1 meter76±3dB(A)
Cooling methodAir cooling
Oil content1~3 ppm
Outlet ConnectionRc 2
DimensionLength(mm)2300
Width(mm)1350
Height(mm)1500
Weight(KG)1800

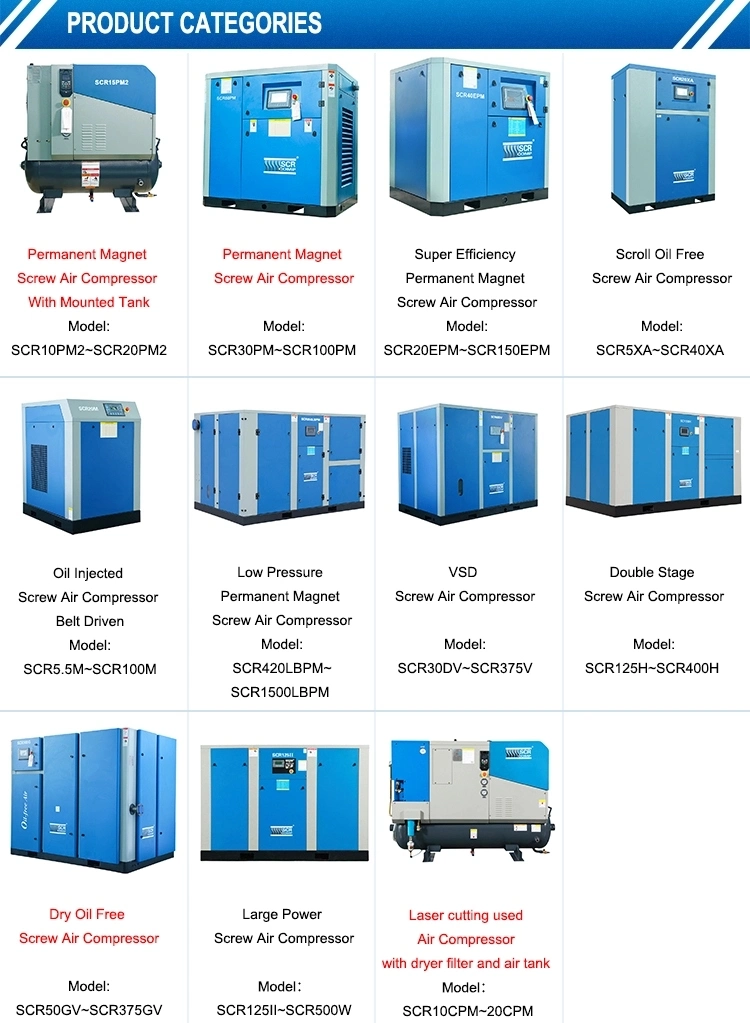

Product Categories
